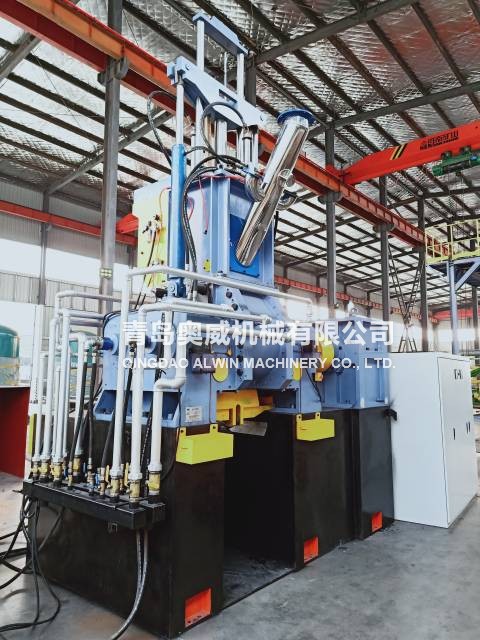

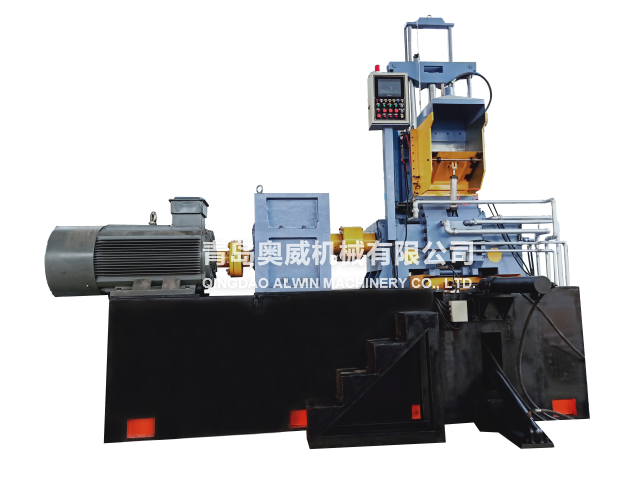

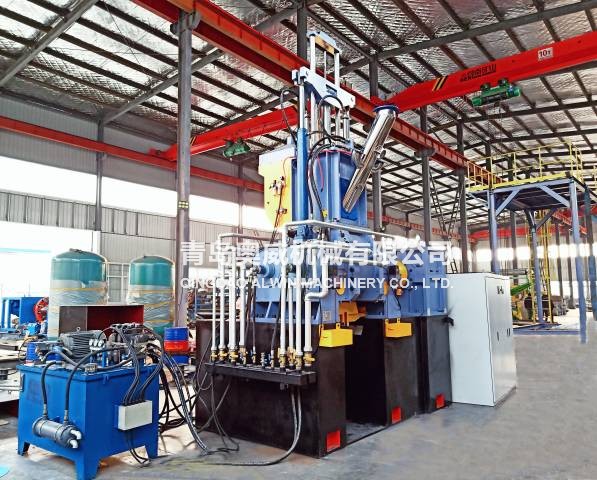

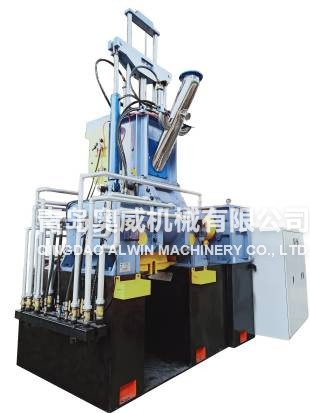

The machine is mainly used for mixing and plasticating of rubber and plastic. Different type of rotors can satisfy the mixing technical requirement. Control system is adoped with PLC system. It has convenient operation, strong anti-interference ability, and safe and reliable signal detection and feedback functions, which can effectively control the quality of rubber mixing and ensure the normal operation of the equipment. In addition, it can be produced according to user's requirements.
型號 Type | X(S)M-25 | X(S)M-50 | X(S)M-80 | X(S)M-90 | X(S)M-110 | X(S)M-160 | X(S)M-180 | X(S)M-250 | X(S)M-270 | X(S)M-300 | X(S)M-370 | X(S)M-420 | |
密煉室總?cè)莘e Total volume of mixing chamber(L) | 26.5（兩棱） 2 wings | 50（兩棱） 2 wings | 80（兩棱） 2 wings | 90（兩棱） 2 wings | 110（兩棱） 2 wings | 147（兩棱） 4 wings | 166（兩棱） 4 wings | 253（兩棱） 2 wings | 250（兩棱） 4 wings | 280（兩棱） 4 wings | 395（兩棱） 4 wings | 425（兩棱） 4 wings | |
密煉室工作容積 Working volume of mixing chamber(L) | 20 | 37.5 | 60 | 67.5 | 82.5 | 110 | 124.5 | 140 | 188 | 210 | 296 | 319 | |
后轉子轉速 Speed of rear rotor(r/min) | 6-60 | 4-40 | 4-40 | 4-40 | 4-40 | 4-40 | 4-40 | 20(前轉子) (Front rotor) | 4-40(6-60) | 4-40(6-60) | 6-60 | 6-60 | |
轉子速比 Speed ratio of rotors(r/min) | 1:1.15 | 1:1.15 | 1:1.15 | 1:1.15 | 1:1.15 | 1:1.16 | 1:1.16 | 1:1.16 | 1:1.17 or 1:1 | 1:1.17 or 1:1 | 1:1.15 or 1:1 | 1:1.15 or 1:1 | |
壓縮空氣壓力 Pressure of compressed air(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
壓縮空氣消耗量 Consumption of compressed air(m3/h) | ~70 / 液壓Hydraulic | ~80/液壓Hydraulic | ~100/液壓Hydraulic | ~100/液壓Hydraulic | ~230/液壓Hydraulic | ~300/液壓Hydraulic | ~300/液壓Hydraulic | ~120/液壓Hydraulic | 液壓上頂栓 Hydralic ram | 液壓上頂栓 Hydralic ram | 液壓上頂栓Hydralic ram | 液壓上頂栓 Hydralic ram | |
冷卻水壓力 Pressure of cooling water(Mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
耗水量 Consumption of cooling water(m3/h) | ~10 | ~15 | ~25 | ~25 | ~35 | ~45 | ~50 | ~23 | ~100 | ~100 | ~150 | ~150 | |
驅動電機功率 Driving motor power(kw) | 90 | 110 | 220 | 220 | 280(315) | 600 | 720 | 280(315) | 1250(1500) | 1250(1500) | 2500 | 2500 | |
外形尺寸 Dimension(mm) | L | 4460 | 5560 | 5800 | 5800 | 6620 | 8000 | 8500 | 7100 | 8700 | 8700 | 10800 | 10800 |
| W | 3225 | 2510 | 2560 | 2560 | 2850 | 3330 | 3400 | 3905 | 4320 | 4320 | 4960 | 4960 | |
| H | 3200 | 3200 | 4200 | 4200 | 4400 | 5260 | 5350 | 4953 | 6160 | 6160 | 7040 | 7040 | |
約重（主電機除外） Weight(Except main motor)(t) | ~7 | ~14 | ~22 | ~22 | ~26 | ~36 | ~39 | ~35 | ~50 | ~54 | ~76 | ~76 | |
