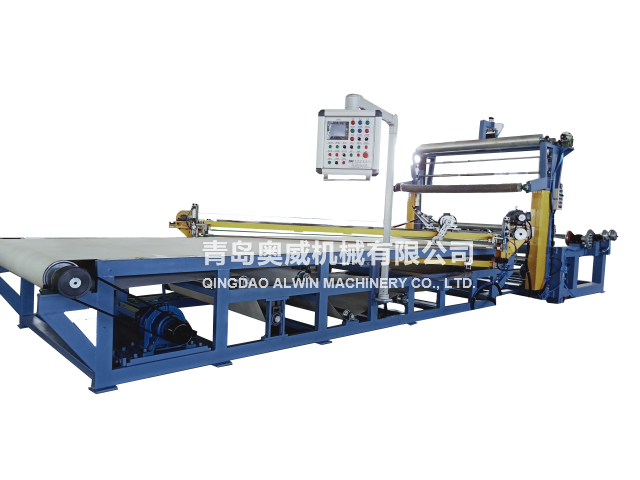

After friction, cutting the curtain fabric, canvas, viboud into given width and angle,and after cutting, all the fabric will be connected and rolled for using.
After friction, cutting the curtain fabric, canvas, viboud into given width and angle,and after cutting, all the fabric will be connected and rolled for using.
每分鐘裁刀次數(shù) Cutting times per minute | 10-20 |
適用簾布門幅 Applicable cord width (mm) | 1500 |
簾布卷直徑 Dia. of fabric cord roll (mm) | 950 |
裁布寬度 Cloth cutting width (mm) | 100-1000 |
裁布角度 Cloth cutting angle (°) | 0-50 |
裁刀行程 Stroke of cutter (mm) | 2800 |
定長方式 Length fixing type | 手動或自動 Manual or automatic |
裁刀轉(zhuǎn)速 Revolving speed of cutter (r/min) | 5700 |
壓縮空氣壓力 Pressure of compressed air (Mpa) | 0.6-0.8 |
總?cè)萘?nbsp; Total capacity (kw/h) | 10 |
外形尺寸 Overall dim. (LxWxH) (mm | 10500x4300x2100 |
重量 Weight (kg) | 4500 |
