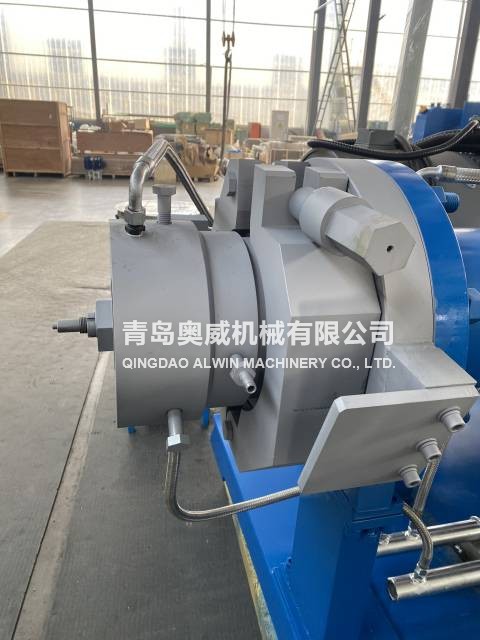

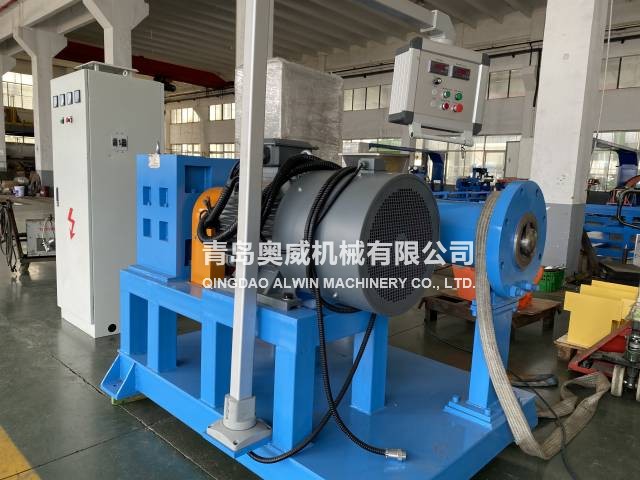

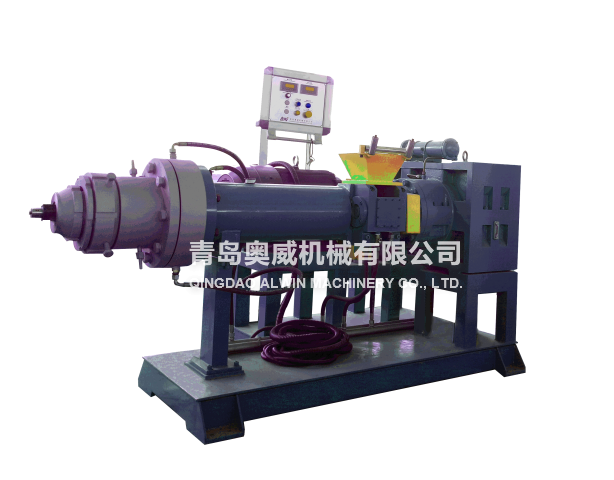

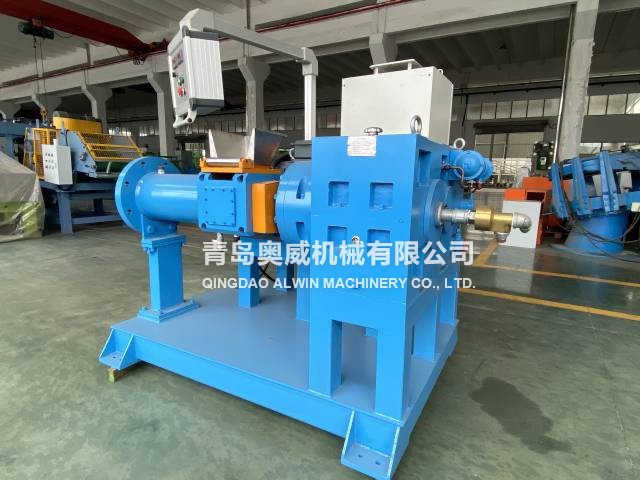

The machine is mainly used for extruding and moulding rubber material, and to produce the semi-finished products with certain sectional configuration, such as tyre thread, inner tube, rubber hose, rubber strip and so on, which can be used to wrap the steel wire cable and electrical wire.
| 型號Type | XJ-65 | XJ-115B | XJ-120 | XJ-150 | XJ-200 | |
螺桿螺紋形式 Form of screw&screw thread | 雙頭等深收斂式 Double-head equaldepth convergent type | 雙頭收斂式 Double-head convergent type | 雙頭收斂式 Double-head convergent type | 雙頭不等深收斂式 Two-head unequal depth convergent type | 雙頭收斂式 Double-head convergent type | |
螺桿直徑 Dia. of screw (mm) | 65 | 115 | 120 | 150 | 200 | |
螺桿長徑比 L/D of screw | 4 | 4.8 | 4.6 | 4.43 | 4.35 | |
壓縮比 Compression ratio | 1.3 | 1.34 | ||||
螺桿轉速 Revolving speed of screw (r/min) | 5.2-54 | 5.2-54 | 5.6-55.6 | 20-26 | 22.4-67.2 | |
電機功率 Motor power (kw) | 電磁調速7.5KW Electromagnetic speed 7.5KW | 電磁調速22KW Electromagnetic speed 22KW | 電磁調速22KW Electromagnetic speed 22KW | 變頻調速55KW/8.3-55KW Frequency conversion speed regulating 55KW/8.3-55KW | 變頻調速75KW/25KW-75KW整流電機 Frequency conversion speed regulating 75 commutator motor 25-75 | |
生產能力 Production capacity (kg/h) | 50-80 | 100-420 | 100-450 | 700-1200 | 1500-2200 | |
蒸汽壓力 Steam pressure (Mpa) | 0.2-0.3 | 0.4-0.6 | 0.2-0.4 | 0.6 | 0.6-0.8 | |
冷卻水壓力 Pressure of cooling water (Mpa) | 0.2-0.3 | 0.2-0.3 | 0.2-0.4 | 0.2-0.3 | 0.2-0.3 | |
外形尺寸 Overall dim. (mm) | L | 1750 | 2390 | 2427 | 3411 | 4564 |
| W | 550 | 760 | 750 | 814 | 1800 | |
| H | 1100 | 1450 | 1330 | 1470 | 1750 | |
